Goodman 1.5 Ton 15.2 SEER2 Heat Pump Split System Central Air

FREE SHIPPING - Great Pricing
Backed by the most knowledgeable staff in the business:
We know HVAC so you don't have to.

ONE OF THE BIGGEST NAMES IN HVAC...
FREE ACESSORIES + FREE SHIPPING!

Goodman is manufactured in Texas and owned by Daikin, one of the most popular choices in home HVAC units. This system is so energy-efficient you'll enjoy the savings as much as the reliable and comfortable heating and cooling of our recommended heat pump system!

This central air system takes care of heating and cooling your home by combining a highly rated heat pump condenser, air handler, and back-up heating coil for the perfect home comfort package.

SEER Notice: The system SEER can be different from the condenser SEER, the true SEER rating achieved depends on the system as a whole and not just the condenser. We advertise the true SEER of the system and this can be verified with the AHRI number provided in the specs.

One easy order with everything needed for install:

• Heat Pump System with Backup Heater Coil
• 30' Insulated Line Set
• Condenser Wire Whip
• Condenser Pad
• 60 amp Disconnect
• 2H/1C Thermostat

Bundle Model Numbers:

GLZS4BA1810 / AMST24BU1300 / HKTSD05X1 / LS38343830 / 84132 / 83335 / B1220NC / EL3030-3 / CFW01035

System SPECIFICATIONS

R32 Goodman 1.5 Ton 15.2 SEER2 Heat Pump AC Split System

Utilizing advanced technology, the Goodman GLZS4 heat pump condenser and AMST air handler efficiently transfer heat between the indoors and outdoors, providing both heating and cooling functionalities for year-round comfort. With a straightforward installation process, you can expect convenience that is also cost-efficient, making this system an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.

QUICK FACTS

• Ideal size to cover a small house in ideal climates
• 1.5 ton, 15.2 SEER2 heat pump system
• R32 - Complies with Clean Air Act regulations
• Condenser is fully pre-charged for up to 15' of line set
• Factory-installed filter drier, accumulator, and muffler
• Multi-positional Air Handler with a Multi-speed ECM blower

1.5 Ton, 15.2 SEER2
The Goodman GLZS4BA1810 / AMST24BU1300 heat pump system has a capacity of 1.5 tons (18,000 BTU) and in an ideal climate, this tonnage will normally cover up to a small house. The higher the SEER2 rating, the less electricity is needed to keep your house cool in the summer. Most new standard systems have a SEER2 rating of 14.3, while this system reaches 15.2 SEER2 - this high efficiency ensures you will save on utility bills with maximum comfort!

In some bundles, the air handler or coil associated with the condenser may be intentionally larger in tonnage to maintain the unit's overall efficiency. Efficiency ratings depend on how the system as a whole operates, and not just the condenser - all advertised ratings can be confirmed with the AHRI certificate in this listing.

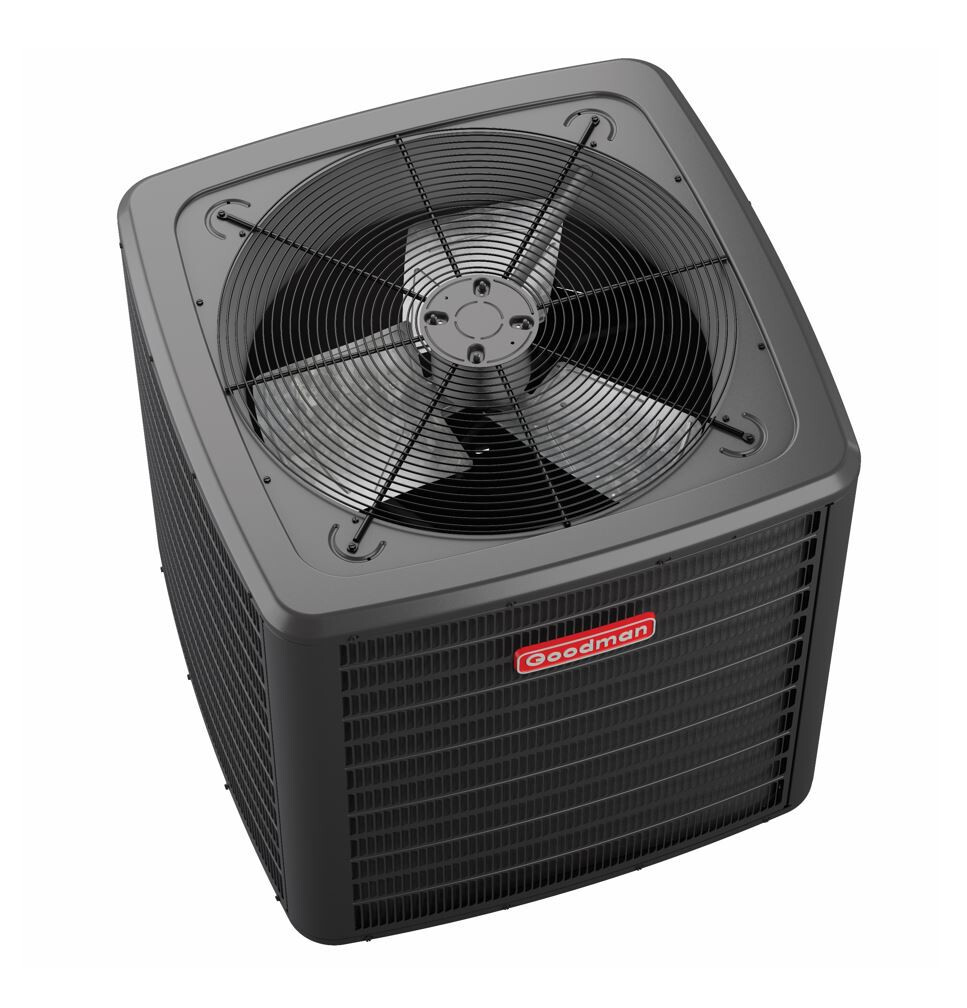

GLZS4 Heat Pump Condenser
Goodman GLZS4 series of heat pump condensers are manufactured with a durable cabinet that has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. This unit comes equipped with a factory-installed filter drier, compressor crankcase heater, and a high-capacity muffler - these features protect the unit from impurities in the refrigerant and other general wear and tear.

With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GLZS4 heat pump has some of the lowest sound outputs on a single stage unit on the market today. All of these features are packed into a unit made of high-quality materials designed to lower your installation and maintenance costs, while providing a superior comfort in your home.

AMST Air Handling Unit
The Goodman AMST utilizes a heavy-gauge cabinet structure with SmartFrame technology in its sub-structure and special mounting features on the cabinet. This, along with it's multi-positional nature - compatible with upflow, downflow, or horizontal orientations - allows the Goodman AMST to be easily installed almost anywhere it fits!

For easier maintenance, there are two panels on the front to access vital areas on the air handler. The AMST series of air handlers lives up to Goodman's comfort expectations with its multi-speed ECM motor and all-aluminum evaporator coil, which provides a more precise and efficient temperature control. Overall this unit is designed with durability and comfort in mind, making it a reliable solution for your home.

System Warranty
GLZS4BA series condensers and AMST series air handlers both come backed by Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Goodman 1.5 Ton 15.2 SEER2 Central Heat Pump System ' R32 SKU GLZS4BA1810 / AMST24BU1300 Refrigerant Charge 15' of Line Set Total Weight 277.000000 AHRI Certificate 215213817 HSPF2
(Whole Season Heating Efficiency)
7.5 Heat Pump Cooling BTU 18000 BTU Heat Pump Heating BTU 18000 BTU Liquid x Suction Line Connections Indoor: 3/8" x 3/4"
Outdoor: 3/8" x 3/4" Condenser Stages Single Stage SEER2
(Whole Season Cooling Efficiency)
15.2 EER2
(Cooling Efficiency at 95°F Only)
12.5 Compressor Type Rotary Blower Motor Multi-Speed Direct Drive ECM Motor Orientation Multi-Positional Electrical 208/230V 1 Phase 60 Hz Max Breaker Size
Condenser 15 amps Min. Breaker Size
Condenser 11.2 amps Tonnage 1.5 Ton BTU/Tonnage 18,000 BTU/1.5 Ton Line Set Connection Sweat AHU Maximum CFM 1215
Mobile Home Approved No Height Indoor: 45"
Outdoor: 32 1/2" Width Indoor: 17 9/16"
Outdoor: 29" Depth Indoor: 21"
Outdoor: 29" Warranty 10 Year Parts with Online Registration

ACCESSORIES OVERVIEW

5kW Tech Recommended Installation Kit - 30ft 5kW Backup Heat Strip
HKTSD05X1
5kW / 30 amps
16,200 BTU Output
2H/1C Thermostat
B1220NC
Bright Blue Backlit Screen
Hardwire or Battery Powered
Adjustable Temperature Limits Insulated Line Set
LS38343830
30 Foot Length
3/8" Liquid Line x 3/4" Suction Line
(Packages Include Reducer Fittings as Needed)
Condenser Pad
EL3030-3
30" x 30" x 3" Lightweight, Rugged Pad
High Recycled Plastic Content
UV Resistant / Drillable / Textured Disconnect Switch
83335
Non-Fused / Rated up to 60 Amps
Knockout Dimensions: 1/2" x 3/4" x 1"
Electrical Wire Whip
84132
10 Gauge 1/2" x 4 Foot Length
2 Non-Metallic Liquid-Tight Connectors
3 Conductors (Black, Red, and Green)
